Solid End Mills

S2SDA
（End mill, Short cut length, 2 flute, For aluminium alloy）

S2SDAD0300

Product Information

  • 2 flute end mill for aluminium alloy and soft materials.

The actual product may differ from the displayed image.

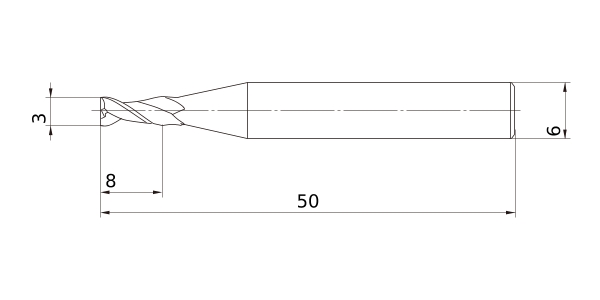

For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Stock
Unit of Length M
DC 3
DCON 6
LF 50
APMX 8
FHA 37.5°
Peripheral effective cutting edge count: ZEFP 2
R Tolerance + -0.02
3D Light Model (STP,STL)
CAD data name Download
S2SDAD0300
CAD
Disclaimer
Be sure to read the following before downloading the data or file you selected. Please understand that if you decide to proceed with the next step it will be at your own discretion and responsibility.


As far as allowed by law, Mitsubishi Materials Corporation shall not be held responsible in any way, either manifest or implied, including but not limited to legal warranty against defects, warranty of merchantability, warranty of fitness for a special purpose, or warranty against infringement of rights.Therefore, in the event that the above-stated download of the selected data or file results in the customer suffering a loss of data or damage to a computer or system, Mitsubishi Materials Corporation shall not be held in anyway responsible for said loss or damage. Further, the contents, including data and files, may be modified or terminated without notice, and Mitsubishi Materials Corporation does not warranty that any posted contents are error free.


If you agree to this disclaimer, please select “Agree” below.
Thank you for your understanding and cooperation.
Show more

Stock

:Inventory maintained in Japan.
:Non stock, produced to order only.
:Inventory maintained in Japan. To be replaced by new products.
:-

  • Recommended Cutting Condition
