Solid End Mills >VC4STB >VC4STBR0050T0500N15

Solid End Mills

VC4STB
（Ball nose taper end mill, Short cut length 4 flute）

VC4STBR0050T0500N15

Product Information

  • The taper neck and short length of cut are adopted in order to increase the rigidity to the fullest extent, ensuring the maximum performance when machining any kind of work material.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Stock
Unit of Length M

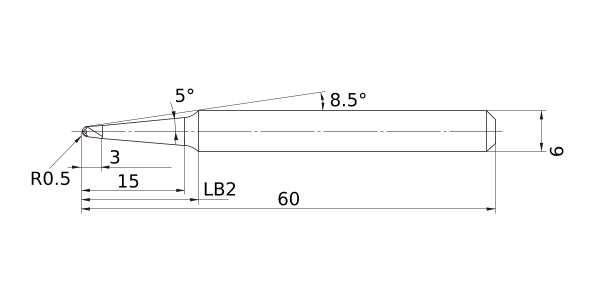

DC 1
DCX 1.44
DCON 6
B2 8.5°
BHTA 5°
LF 60
LU 15
LB 17.2
APMX 3
FHA 30°
RE 0.5
Peripheral effective cutting edge count: ZEFP 4
R Tolerance - -0.01
R Tolerance + 0.01
Coated VC
2D Model (DXF)
CAD data name Download
VC4STBR0050T0500N15
