Solid End Mills >MS3ES >MS3ESD0600L45S06
MS3ES
(End mill, 3 flute, For small automatic lathe)
The actual product may differ from the displayed image.

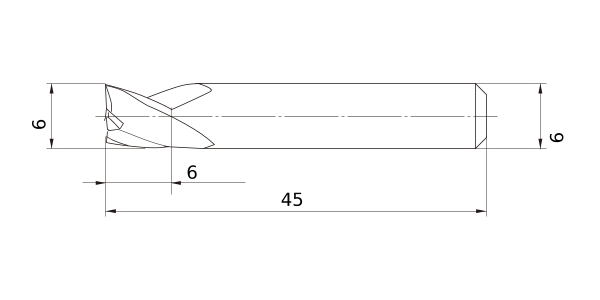

For details, please check the dimensions below.
Diameter (Unit) | |
---|---|
Stock | ![]() |
Unit of Length | M |
DC | 6 |
DCON | 6 |
LF | 45 |
APMX | 6 |
FHA | 30° |
Peripheral effective cutting edge count: ZEFP | 3 |
Max. Cutting EdgeDiameter Tolerance | 0 |
Min. Cutting EdgeDiameter Tolerance | -0.02 |
Coated | MS |
Stock
:Inventory maintained in Japan.
:Non stock, produced to order only.
:Inventory maintained in Japan. To be replaced by new products.
:-
Recommended Cutting Condition
