Solid End Mills >VF2XLB >VF2XLBR0010N005S04

Solid End Mills

VF2XLB
（Ball nose, Long cut length, 2 flute, For hardened materials）

VF2XLBR0010N005S04

Product Information

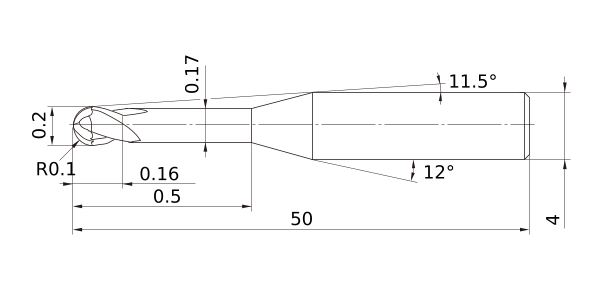

  • 2 flute long neck ball nose end mills with Impact Miracle coating for high hardness materials.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Stock
Unit of Length M
DC 0.2
DCON 4
DN 0.17
B2 11.5°
BHTA2 12°
LF 50
LU 0.5
APMX 0.16
FHA 30°
RE 0.1
Peripheral effective cutting edge count: ZEFP 2
R Tolerance - -0.007
R Tolerance + 0.007
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -0.02
Coated VF
2D Model (DXF)
CAD data name Download
VF2XLBR0010N005S04
CAD
