Solid End Mills >VF3XB >VF3XBR0040T0024L008

Solid End Mills

VF3XB
（Ball nose, Taper neck, 3 flute, For hardened materials）

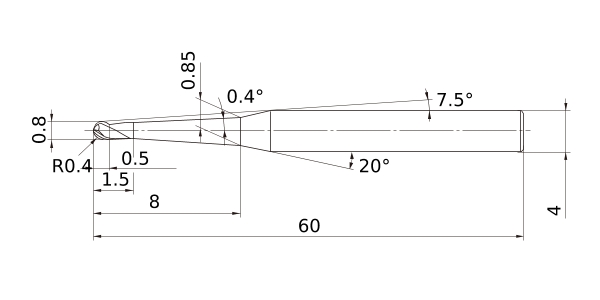

VF3XBR0040T0024L008

Product Information

  • 3 flute ball end mill, high rigidity taper neck type.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Stock
Unit of Length M
DC 0.8
DCON 4
BD2 0.85
B2 7.5°
BHTA2 0.4°
BHTA3 20°
LF 60
LU 1.5
LB2 8
APMX 0.5
FHA 30°
RE 0.4
Peripheral effective cutting edge count: ZEFP 3
R Tolerance - -0.01
R Tolerance + 0.01
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -0.02
Coated VF
2D Model (DXF)
CAD data name Download
VF3XBR0040T0024L008
CAD
