Solid End Mills >VFMHVRBCH >VFMHVRBCHD1600R100

Solid End Mills

VFMHVRBCH
（Corner radius end mill, Medium cut length, 4 flute, Irregular helix flutes, with multiple internal through coolant holes）

VFMHVRBCHD1600R100

Product Information

  • Vibration control corner radius end mill with multiple internal through coolant holes ensures stable machining on difficult-to-cut materials and applications requiring long overhangs.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Stock
Unit of Length M

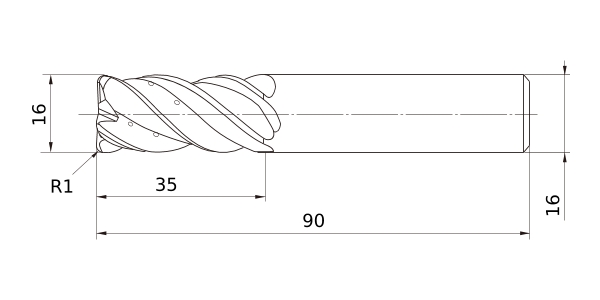

DC 16
DCON 16
LF 90
APMX 35
RE 1
Peripheral effective cutting edge count: ZEFP 4
R Tolerance - -0.015
R Tolerance + 0.015
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -0.011
Coated VF
