Solid End Mills >VFHVRB >VFHVRBD0150R03N004
VFHVRB
(Corner radius, Short cut length, 4 flute, Irregular helix flutes)
The actual product may differ from the displayed image.

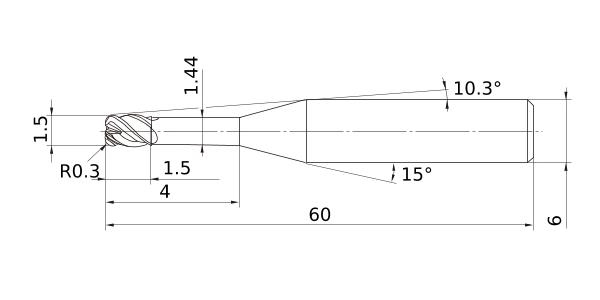

For details, please check the dimensions below.
Diameter (Unit) | |
---|---|
Stock | ![]() |
Unit of Length | M |
DC | 1.5 |
DCON | 6 |
DN | 1.44 |
B2 | 10.3° |
BHTA2 | 15° |
LF | 60 |
LU | 4 |
APMX | 1.5 |
RE | 0.3 |
Peripheral effective cutting edge count: ZEFP | 4 |
R Tolerance - | -0.007 |
R Tolerance + | 0.007 |
Max. Cutting EdgeDiameter Tolerance | 0 |
Min. Cutting EdgeDiameter Tolerance | -0.02 |
Coated | VF |
Stock
:Inventory maintained in Japan.
:Non stock, produced to order only.
:Inventory maintained in Japan. To be replaced by new products.
:-
Recommended Cutting Condition
