Solid End Mills >VFHVRB_TAPER_NECK >VFHVRBD015R03N040T09

Solid End Mills

VFHVRB_TAPER_NECK
（Corner radius, Short cut length, 4 flute, Irregular helix flutes）

VFHVRBD015R03N040T09

Product Information

  • Impact Miracle corner radius end mill for high feed and efficient machining.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Stock
Unit of Length M

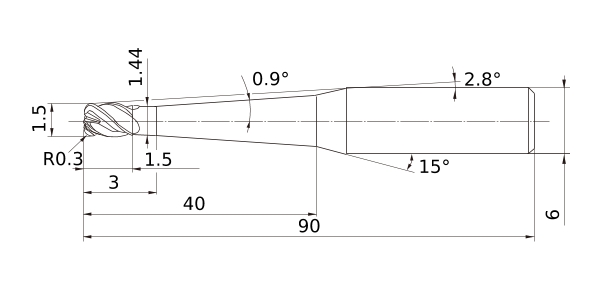

DC 1.5
DCON 6
DN 1.44
B2 2.8°
BHTA2 0.9°
BHTA3 15°
LF 90
LU 3
LB2 40
APMX 1.5
RE 0.3
Peripheral effective cutting edge count: ZEFP 4
R Tolerance - -0.007
R Tolerance + 0.007
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -0.02
Coated VF
2D Model (DXF)
CAD data name Download
VFHVRBD015R03N040T09
