Solid End Mills >VFHVRB_TAPER_NECK >VFHVRBD020R05N015T04

Solid End Mills

VFHVRB_TAPER_NECK
（Corner radius, Short cut length, 4 flute, Irregular helix flutes）

VFHVRBD020R05N015T04

Product Information

  • Impact Miracle corner radius end mill for high feed and efficient machining.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Stock
Unit of Length M

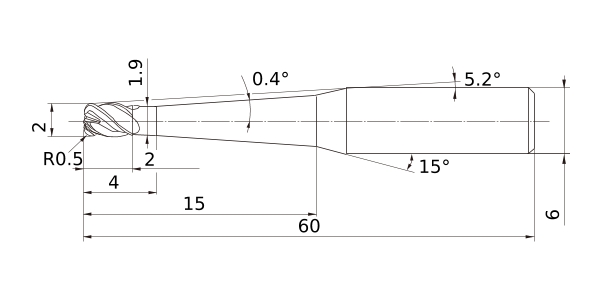

DC 2
DCON 6
DN 1.9
B2 5.2°
BHTA2 0.4°
BHTA3 15°
LF 60
LU 4
LB2 15
APMX 2
RE 0.5
Peripheral effective cutting edge count: ZEFP 4
R Tolerance - -0.007
R Tolerance + 0.007
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -0.02
Coated VF
