Solid End Mills >VQMHV >VQMHVD0700
VQMHV
(End mill, Medium cut length, 4 flute, Irregular helix flutes)
The actual product may differ from the displayed image.

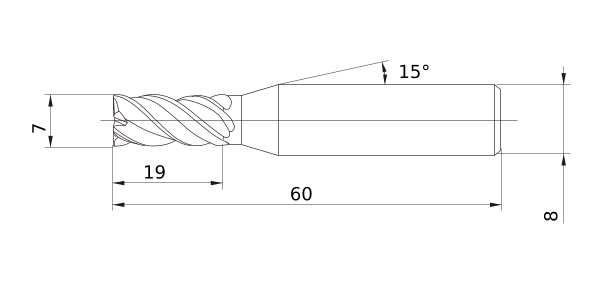

For details, please check the dimensions below.
Diameter (Unit) | |
---|---|
Stock | ![]() |
Unit of Length | M |
DC | 7 |
DCON | 8 |
BHTA2 | 15° |
LF | 60 |
APMX | 19 |
Peripheral effective cutting edge count: ZEFP | 4 |
Max. Cutting EdgeDiameter Tolerance | 0 |
Min. Cutting EdgeDiameter Tolerance | -0.02 |
Coated | VQ |
Stock
:Inventory maintained in Japan.
:Non stock, produced to order only.
:Inventory maintained in Japan. To be replaced by new products.
:-
Recommended Cutting Condition
