Solid End Mills >iMX_C4HV_S >IMX20C4HV200R05020S
iMX_C4HV_S
(Corner radius head, 4 flute, Irregular helix, with coolant hole)

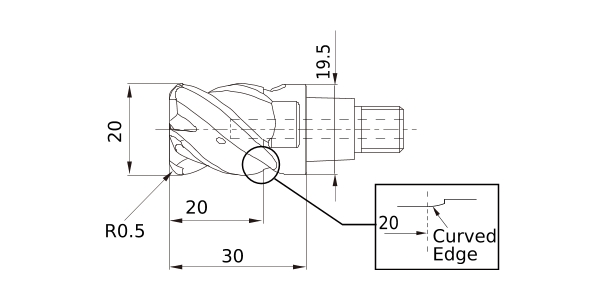

The actual product may differ from the displayed image.
For details, please check the dimensions below.
Diameter (Unit) | |
---|---|
Name of Grade | Carbide |
Grade | EP7020 |
Stock | ![]() |
Unit of Length | M |
DC | 20 |
DCON | 19.5 |
LH | 30 |
APMX | 20 |
FHA | 42°,45° |
RE | 0.5 |
Peripheral effective cutting edge count: ZEFP | 4 |
R Tolerance - | -0.02 |
R Tolerance + | 0.02 |
Max. Cutting EdgeDiameter Tolerance | 0 |
Min. Cutting EdgeDiameter Tolerance | -0.03 |
Stock
:Inventory maintained in Japan.
:Non stock, produced to order only.
:Inventory maintained in Japan. To be replaced by new products.
:-
