Solid End Mills >MP2SSB >MP2SSBR0150
MP2SSB
(Ball nose, Short cut length, 2 flute, Short shank)

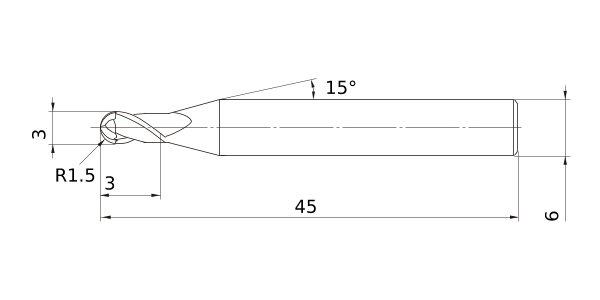

The actual product may differ from the displayed image.
For details, please check the dimensions below.
Diameter (Unit) | |
---|---|
Stock | ![]() |
Unit of Length | M |
DC | 3 |
DCON | 6 |
BHTA2 | 15° |
LF | 45 |
APMX | 3 |
FHA | 30° |
RE | 1.5 |
Peripheral effective cutting edge count: ZEFP | 2 |
R Tolerance - | -0.005 |
R Tolerance + | 0.005 |
Coated | MS+ |
Stock
:Inventory maintained in Japan.
:Non stock, produced to order only.
:Inventory maintained in Japan. To be replaced by new products.
:-
Recommended Cutting Condition
