Solid End Mills >iMX_CH3L >IMX20CH3L200A45

Solid End Mills

iMX_CH3L
（Chamfer head, 3 flute）

IMX20CH3L200A45

Product Information

  • Chamfered cutting head suitable for inner circumference.
  • Anti-vibration proprietary design.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade EP7020
Stock
Unit of Length M

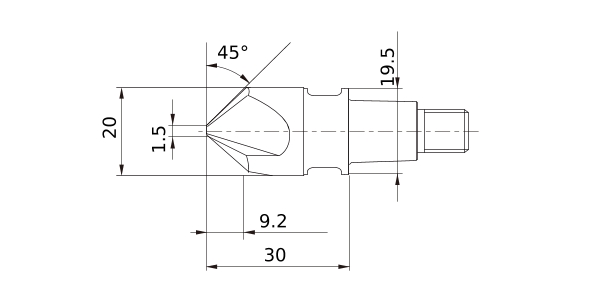

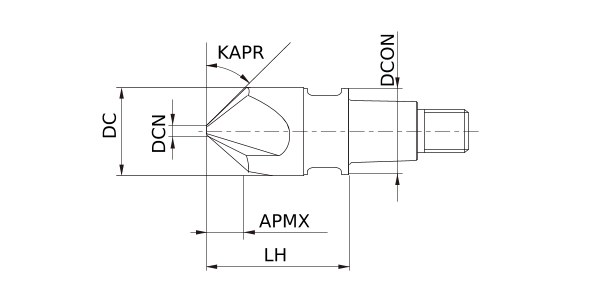

DC 20
DCON 19.5
KAPR 45°
LH 30
APMX 9.2
DCN 1.5
FHA 5°
Peripheral effective cutting edge count: ZEFP 3
