Solid End Mills >MP3XB >MP3XBR0050N030T05
MP3XB
(Ball nose, 3 flute, Taper neck)

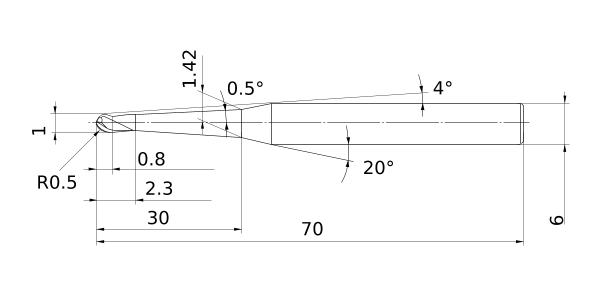

The actual product may differ from the displayed image.
For details, please check the dimensions below.
Diameter (Unit) | |
---|---|
Stock | ![]() |
Unit of Length | M |
DC | 1 |
DCON | 6 |
BD2 | 1.42 |
B2 | 4° |
BHTA2 | 0.5° |
BHTA3 | 20° |
LF | 70 |
LU | 2.3 |
LB2 | 30 |
APMX | 0.8 |
FHA | 45° |
RE | 0.5 |
Peripheral effective cutting edge count: ZEFP | 3 |
R Tolerance - | -0.005 |
R Tolerance + | 0.005 |
Coated | MS+ |
Stock
:Inventory maintained in Japan.
:Non stock, produced to order only.
:Inventory maintained in Japan. To be replaced by new products.
:-
Recommended Cutting Condition
