Solid End Mills >MP3XB >MP3XBR0050N030T10

Solid End Mills

MP3XB
（Ball nose, 3 flute, Taper neck）

MP3XBR0050N030T10

Product Information

  • 3 flute long neck ball nose end mill.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Stock

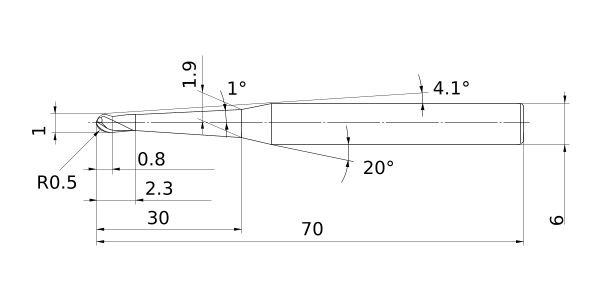

Unit of Length M
DC 1
DCON 6
BD2 1.9
B2 4.1°
BHTA2 1°
BHTA3 20°
LF 70
LU 2.3
LB2 30
APMX 0.8
FHA 45°
RE 0.5
Peripheral effective cutting edge count: ZEFP 3
R Tolerance - -0.005
R Tolerance + 0.005
Coated MS+
