Solid End Mills >MP3XB >MP3XBR0050N020T30

Solid End Mills

MP3XB
（Ball nose, 3 flute, Taper neck）

MP3XBR0050N020T30

Product Information

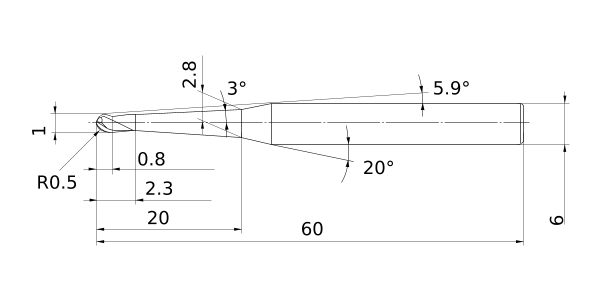

  • 3 flute long neck ball nose end mill.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Stock
Unit of Length M
DC 1
DCON 6
BD2 2.8
B2 5.9°
BHTA2 3°
BHTA3 20°
LF 60
LU 2.3
LB2 20
APMX 0.8
FHA 45°
RE 0.5
Peripheral effective cutting edge count: ZEFP 3
R Tolerance - -0.005
R Tolerance + 0.005
Coated MS+
2D Model (DXF)
CAD data name Download
MP3XBR0050N020T30
CAD
