Solid End Mills >DF2XLBF >DF2XLBFR0030N100

Solid End Mills

DF2XLBF
（Ball nose, 2 flute, Long neck, For graphite）

DF2XLBFR0030N100

Product Information

  • Diamond coated long-neck ball end mills are ideal for excellent surface finishes on non-ferrous materials.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Stock
Unit of Length M

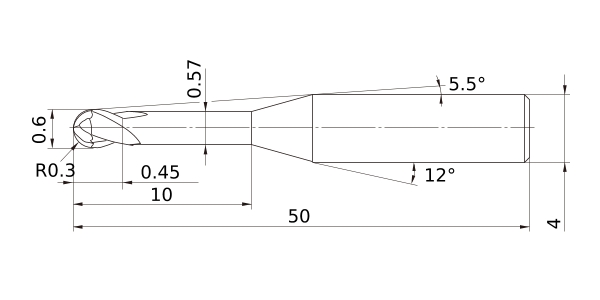

DC 0.6
DCON 4
DN 0.57
B2 5.5°
BHTA2 12°
LF 50
LU 10
APMX 0.45
FHA 30°
RE 0.3
Peripheral effective cutting edge count: ZEFP 2
R Tolerance - -0.005
R Tolerance + 0.005
Coated DF
2D Model (DXF)
CAD data name Download
DF2XLBFR0030N100
CAD
