Solid End Mills >MPXLRB >MPXLRBD0030R005N020
MPXLRB
(Corner radius, Short cut length, Long neck, 2- 4 flute)
The actual product may differ from the displayed image.

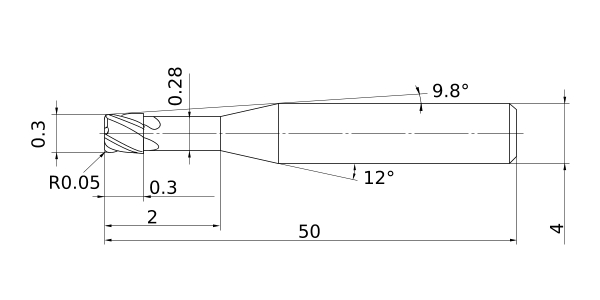

For details, please check the dimensions below.
Diameter (Unit) | |
---|---|
Stock | ![]() |
Unit of Length | M |
DC | 0.3 |
DCON | 4 |
DN | 0.28 |
B2 | 9.8° |
BHTA2 | 12° |
LF | 50 |
LU | 2 |
APMX | 0.3 |
FHA | 30° |
RE | 0.05 |
Peripheral effective cutting edge count: ZEFP | 2 |
R Tolerance - | -0.005 |
R Tolerance + | 0.005 |
Max. Cutting EdgeDiameter Tolerance | 0 |
Min. Cutting EdgeDiameter Tolerance | -0.01 |
Coated | MS+ |
Stock
:Inventory maintained in Japan.
:Non stock, produced to order only.
:Inventory maintained in Japan. To be replaced by new products.
:-
Recommended Cutting Condition
