Solid End Mills >VQ2XLB >VQ2XLBR0050N080S06
VQ2XLB
(Ball nose, Short cut length, 2 flute, Long neck)
The actual product may differ from the displayed image.

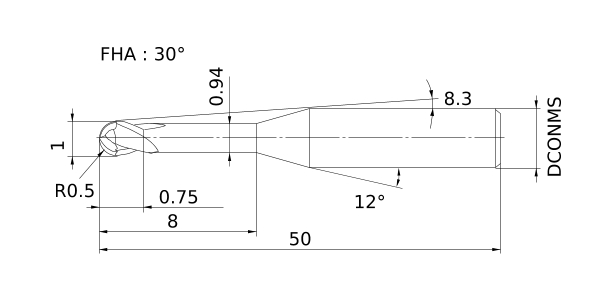

For details, please check the dimensions below.
Diameter (Unit) | |
---|---|
Stock | ![]() |
Unit of Length | M |
DC | 1 |
DCON | 6 |
DN | 0.94 |
B2 | 8.3 |
BHTA2 | 12° |
LF | 50 |
LU | 8 |
APMX | 0.75 |
FHA | 30° |
RE | 0.5 |
Peripheral effective cutting edge count: ZEFP | 2 |
R Tolerance - | -0.005 |
R Tolerance + | 0.005 |
Coated | VQ |
Stock
:Inventory maintained in Japan.
:Non stock, produced to order only.
:Inventory maintained in Japan. To be replaced by new products.
:-
Recommended Cutting Condition
