Solid End Mills >MP3ES >MP3ESD0900S10
MP3ES
(End mill, 3 flute, For swiss type lathe)

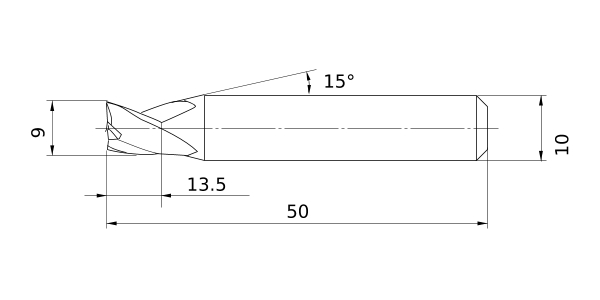

The actual product may differ from the displayed image.
For details, please check the dimensions below.
Diameter (Unit) | |
---|---|
Stock | ![]() |
Unit of Length | M |
DC | 9 |
DCON | 10 |
BHTA2 | 15° |
LF | 50 |
APMX | 13.5 |
FHA | 30° |
Peripheral effective cutting edge count: ZEFP | 3 |
Max. Cutting EdgeDiameter Tolerance | -0.01 |
Min. Cutting EdgeDiameter Tolerance | -0.03 |
Coated | MS+ |
Stock
:Inventory maintained in Japan.
:Non stock, produced to order only.
:Inventory maintained in Japan. To be replaced by new products.
:-
Recommended Cutting Condition
