Solid End Mills >iMX_C6HV_C >IMX10C6HV100R10010C

Solid End Mills

iMX_C6HV_C
（CORNER RADIUS HEAD, 6 FLUTE, IRREGULAR HELIX, WITH COOLANT HOLE）

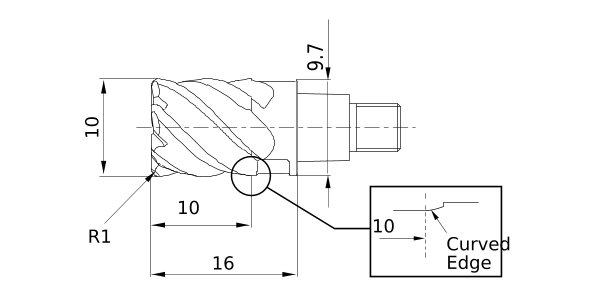

IMX10C6HV100R10010C

Product Information

  • Chatter and vibration are suppressed and stable machining is enabled by using irregular helix flutes.
  • Equipped with centre through coolant hole to improve chip evacuation.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade EP7020
Stock
Unit of Length M
DC 10
DCON 9.7
LH 16
APMX 10
FHA 36°,40°
RE 1
Peripheral effective cutting edge count: ZEFP 6
R Tolerance - -0.02
R Tolerance + 0.02
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -0.03
2D Model (DXF)
CAD data name Download
IMX10C6HV100R10010C
CAD
