GYAR25R90B-H07

Product Information

The actual product may differ from the displayed image.

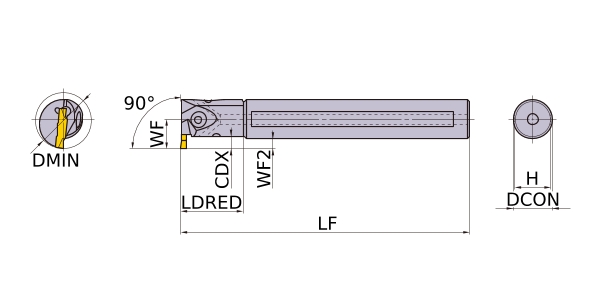

For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock

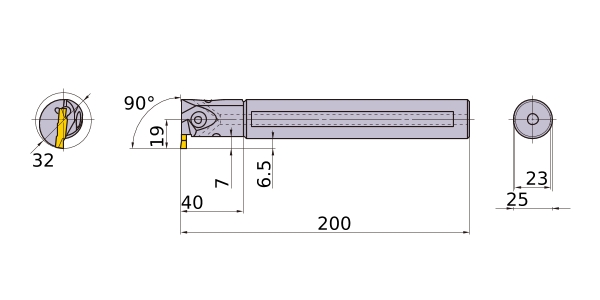

Unit of Length M
DMIN 32
DCON 25
LF 200
CDX 7
LDRED 40
WF 19
H 23
CW 5
WF2 6.5
2D Model (DXF)
CAD data name Download
6G1R9H1
