立铣刀(可转位刀片式)

BRP6
（强力立铣刀 BRP）

BRP6PR403ELS42

产品信息

使用11°正角刀片
圆刀片的切削刃强度高
规格齐全
最适于模具的加工
最大切削深度5.5mm
对应各种加工形态

实际产品与显示图像存在不一致情况，敬请留意。

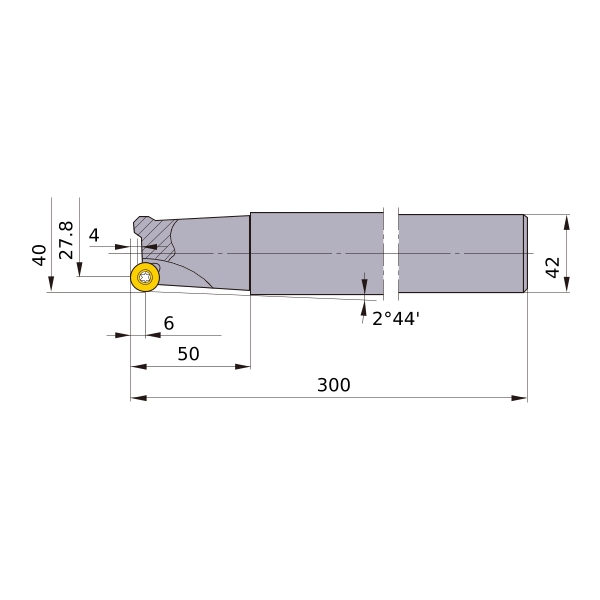

尺寸 ()

Metric	Inch
mm	in
microns *	microinches *
N	lbf
deg	deg
MPa	psi
N/m	lbf/in
Nm	lbf-in
kg	lbs
rpm	rpm

切削方向

库存

长度单位

27.8

DCX

DCON

2°44'

300

APMX

GAMP

+5°

GAMF

-4°

Cutting item count: CICT

Peripheral effective cutting edge count: ZEFP
