立铣刀(可转位刀片式)

DCCC
（大切削深度加工用可转位刀片式立铣刀）

DCCCR5018S508

产品信息

采用不等螺旋刃与左螺旋，防止高频振颤。

实际产品与显示图像存在不一致情况，敬请留意。

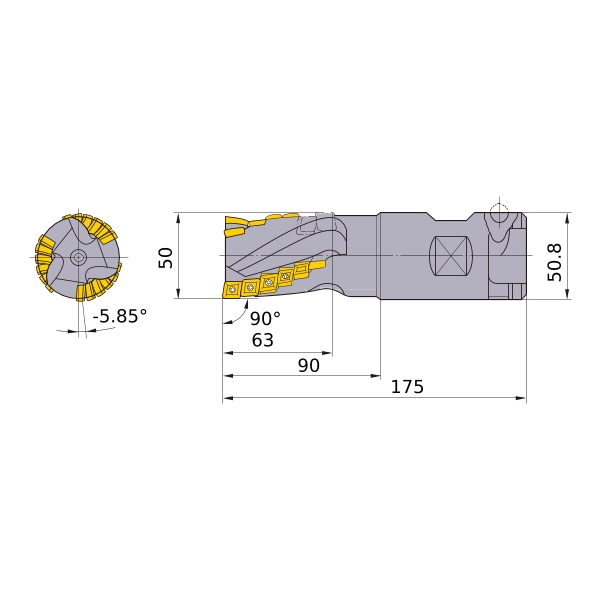

尺寸 ()

Metric	Inch
mm	in
microns *	microinches *
N	lbf
deg	deg
MPa	psi
N/m	lbf/in
Nm	lbf-in
kg	lbs
rpm	rpm

切削方向

库存

长度单位

DCON

50.8

KAPR

90°

175

APMX

GAMP

-8°

GAMF

-5.85°

2.3

Cutting item count: CICT

Peripheral effective cutting edge count: ZEFP

Face effective cutting edge count: ZEFF
