Boring >S-MSKN_INCH >S-MSKNR-244

Boring

S-MSKN_INCH


S-MSKNR-244 EDP:104382

Product Information

  • Negative rake.
  • Two wall pocket.
  • Pin lock and top clamp retention.
  • (Opt.) Single clamp available as clamp on or pin lock holder.

The actual product may differ from the displayed image.

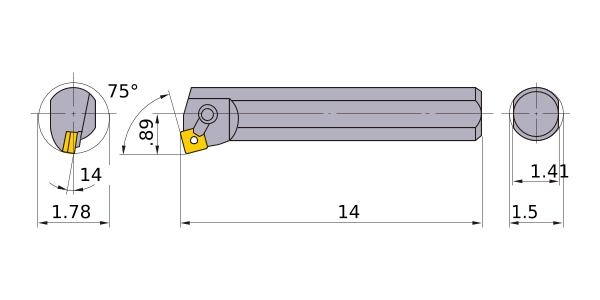

For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
ANSI S24U-MSKNR4
Sales unit 1
Hand R
Stock
Unit of Length I
DMIN 1.78
DCON 1.5
KAPR 75°
LF 14
WF .89
H 1.41
GAMF 14
Peripheral effective cutting edge count: ZEFP 1
Insert Number SN__43

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
