  • Negative rake.
  • Two wall pocket.
  • Pin lock and top clamp retention.
  • (Opt.) Single clamp available as clamp on or pin lock holder.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

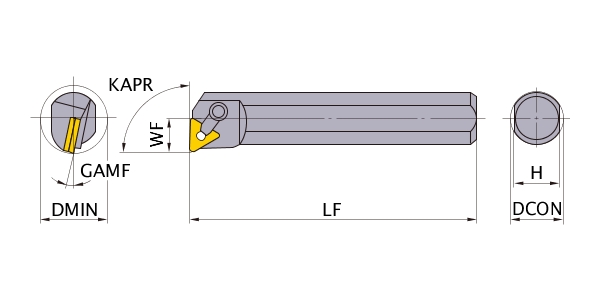

Type1 [Outspread]

  1
Order Number Type CAD Type of Coolant Hand Name of Grade Grade Stock
S-MTFNR-163X Type1 R
S-MTFNR-203X Type1 R
S-MTFNR-243X Type1 R
S-MTFNR-283X Type1 R
S-MTFNR-244 Type1 R
S-MTFNR-284 Type1 R
S-MTFNR-324 Type1 R
S-MTFNL-163X Type1 L
S-MTFNL-203X Type1 L
S-MTFNL-243X Type1 L
S-MTFNL-244 Type1 L
S-MTFNL-284 Type1 L
S-MTFNL-324 Type1 L
Insert Number D4 DCON L1 L LF L24 FLGT CBDP OAL LPR L2 L19 F1 WF BS H1 H RR GAMF GAMO LAMS ALF FHA KRINS STA D1 IC DMIN CUTDIA DAXX DC DC1 DC2 BD BD1 BD2 BD3 BD4 BD5 RE RE1 RE2 RE3 D2 DCX D5 DN DCSFMS D8 DAH DAH1 DAH2 DCCB CNT D9 B L3 LBB CDX LDRED L20 L15 LCF LU L7 LH LCCB L8 L9 HBKW LS H2 HF HBH W1 KWW S1 WF2 S4 S Z2 PDY PDX ap APMX HTB DCN CDI DCINX BDX CWX LBX WT R PRFRAD ld BHTA BHTA1 BHTA2 BHTA3 BHTA4 BHTA5 SIG SIG1 SIG2 LTA LBYD KWL Cutting item count: CICT Peripheral effective cutting edge count: ZEFP Face effective cutting edge count: ZEFF Effective Cutting Edge Breaker Use body Modular Blade DBC DBC1 DBC2 DBC3 DCONWS DCONMS KAPR KAPR1 KAPR2 LB LB1 LB2 LB3 LB4 LB5 LE LE1 LE2 LE3 TX1 TX2 TX3
TN__33 1 12 .64 .91 15 1.28 1   90°
TN__33 1.25 12 .765 1.16 12 1.53 1   90°
TN__33 1.5 14 .89 1.41 10 1.78 1   90°
TN__33 1.75 14 1.015 1.66 10 2.03 1   90°
TN__43 1.5 14 1.031 1.41 10 2.062 1   90°
TN__43 1.75 14 1.156 1.66 8 2.312 1   90°
TN__43 2 14 1.281 1.91 8 2.562 1   90°
TN__33 1 12 .64 .91 15 1.28 1   90°
TN__33 1.25 12 .765 1.16 12 1.53 1   90°
TN__33 1.5 14 .89 1.41 10 1.78 1   90°
TN__43 1.5 14 1.031 1.41 10 2.062 1   90°
TN__43 1.75 14 1.156 1.66 8 2.312 1   90°
TN__43 2 14 1.281 1.91 8 2.562 1   90°
  1

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
