Drills >MNS >MNS0340X10DB

Drills

MNS
（WSTAR）

MNS0340X10DB EDP:464315

Product Information

  • Four coolant holes is ideal for MQL applications

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade TF15
Sales unit 1
Stock
Unit of Length M

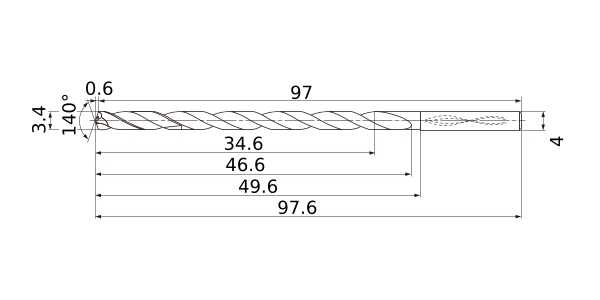

DC 3.4
DCON 4
SIG 140°
LF 97
OAL 97.6
LH 49.6
LU 34.6
LCF 46.6
FHA 30°
ld 10
PL 0.6
Effective Cutting Edge 2
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -0.018
Type of Coolant Internal
