Drills >TAW_INCH >TAWLN0049

Drills

TAW_INCH
（Solid Carbide Drill for Swiss-type Automatic & Small CNC Lathes WSTAR Drill Series）

TAWLN0049 EDP:409025

Product Information

  • Wavy cutting edge design for good chip control.
  • Serration geometry for accurate insert location.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Stock
Unit of Length I

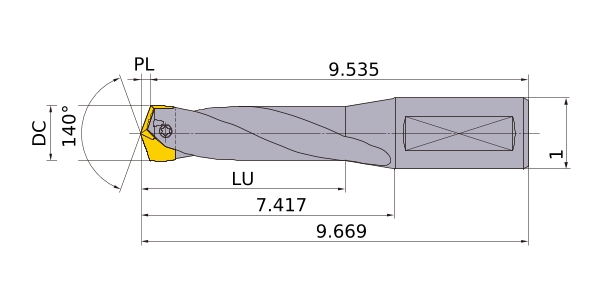

DCON 1
SIG 140°
LF 9.535
OAL 9.669
LH 7.417
LBX 6.512
ld 8
Cutting item count: CICT 1
Effective Cutting Edge 2
Type of Coolant Internal
2D Model (DXF)
CAD data name Download
TAWLN0049
CAD
