MAS01719MB EDP:214789

Product Information

  • High hole accuracy.
  • Pre-hole drilling for rolled tap.

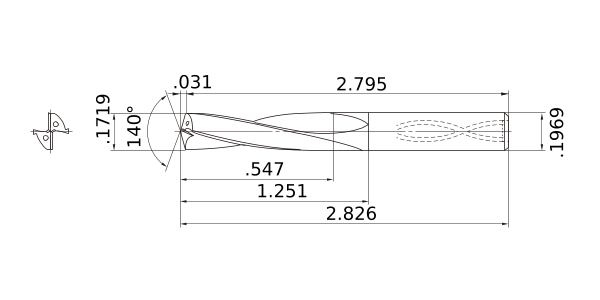

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade HTi10
Sales unit 1
Stock
Unit of Length I
DC .1719
DCON .1969
SIG 140°
LF 2.795
OAL 2.826
LU .547
LCF 1.251
FHA 10°
ld 3
PL .031
Effective Cutting Edge 2
Max. Cutting EdgeDiameter Tolerance .0002
Min. Cutting EdgeDiameter Tolerance 0
Type of Coolant Internal
