Drills >MAS_INCH >MAS03438MB

Drills

MAS_INCH


MAS03438MB EDP:214931

Product Information

  • High hole accuracy.
  • Pre-hole drilling for rolled tap.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade HTi10
Sales unit 1
Stock
Unit of Length I

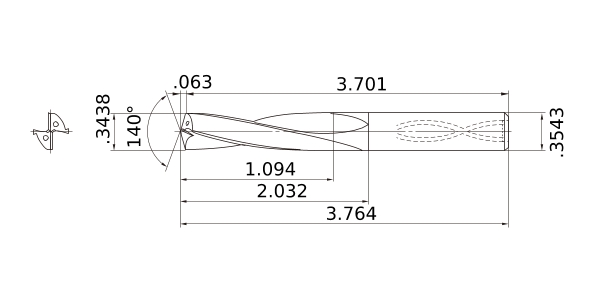

DC .3438
DCON .3543
SIG 140°
LF 3.701
OAL 3.764
LU 1.094
LCF 2.032
FHA 10°
ld 3
PL .063
Effective Cutting Edge 2
Max. Cutting EdgeDiameter Tolerance .0002
Min. Cutting EdgeDiameter Tolerance 0
Type of Coolant Internal
2D Model (DXF)
CAD data name Download
MAS03438MB
CAD
