MWS00225SB EDP:459410

Product Information

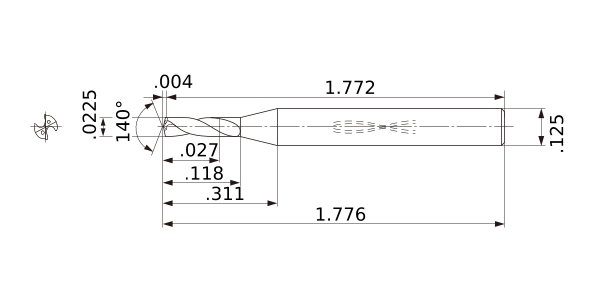

  • For high accuracy and efficient drilling of steels, carbon steels and difficult-to-cut materials.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade VP15TF
Sales unit 1
Stock
Unit of Length I
DC .0225
DCON .125
SIG 140°
LF 1.772
OAL 1.776
LH .311
LU .027
LCF .118
FHA 25°
ld 1
PL .004
Effective Cutting Edge 2
Max. Cutting EdgeDiameter Tolerance .0004
Min. Cutting EdgeDiameter Tolerance 0
Type of Coolant Internal
