MWS00860SB EDP:459735

Product Information

  • For high accuracy and efficient drilling of steels, carbon steels and difficult-to-cut materials.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade VP15TF
Sales unit 1
Stock
Unit of Length I

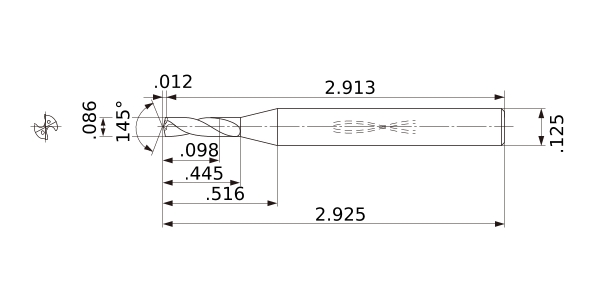

DC .086
DCON .125
SIG 145°
LF 2.913
OAL 2.925
LH .516
LU .098
LCF .445
FHA 30°
ld 1
PL .012
Effective Cutting Edge 2
Max. Cutting EdgeDiameter Tolerance .0006
Min. Cutting EdgeDiameter Tolerance 0
Type of Coolant Internal
2D Model (DXF)
CAD data name Download
MWS00860SB
CAD
