Drills >MVE >MVE1850X02S200

Drills

MVE
（WSTAR）

MVE1850X02S200 EDP:695341

Product Information

  • New grade DP1020 offers long tool life for a wide range of work materials.
  • The unique wavy cutting edge provides excellent sharpness and rigidity and helps to control wear at the periphery.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade DP1020
Sales unit 1
Stock
Unit of Length M

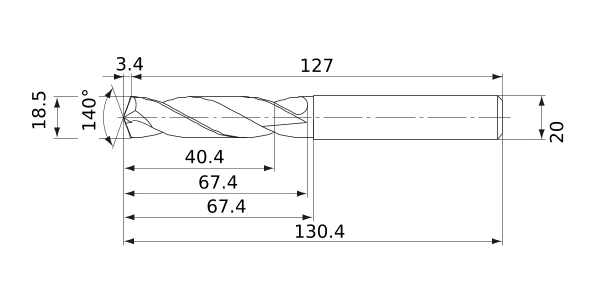

DC 18.5
DCON 20
SIG 140°
LF 127
OAL 130.4
LH 67.4
LU 40.4
LCF 67.4
FHA 30°
ld 2
PL 3.4
Effective Cutting Edge 2
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -0.033
Type of Coolant External
2D Model (DXF)
CAD data name Download
MVE1850X02S200
CAD
