Drills >MVE_INCH >MVE0437X02S060

Drills

MVE_INCH
（WSTAR）

MVE0437X02S060 EDP:662338

Product Information

  • New grade DP1020 offers long tool life for a wide range of work materials.
  • The unique wavy cutting edge provides excellent sharpness and rigidity and helps to control wear at the periphery.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade DP1020
Sales unit 1
Stock
Unit of Length I

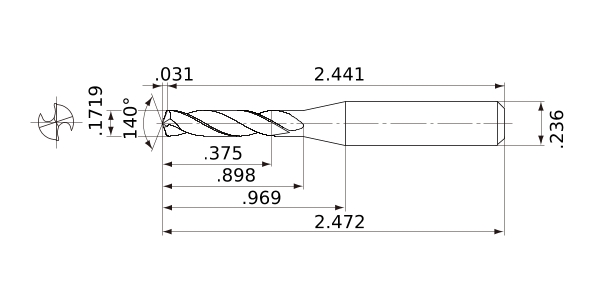

DC .1719
DCON .236
SIG 140°
LF 2.441
OAL 2.472
LH .969
LU .375
LCF .898
FHA 30°
ld 2
PL .031
Effective Cutting Edge 2
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -.0007
Type of Coolant External
2D Model (DXF)
CAD data name Download
MVE0437X02S060
