Drills >MVE_INCH >MVE0635X02S080

Drills

MVE_INCH
（WSTAR）

MVE0635X02S080 EDP:662389

Product Information

  • New grade DP1020 offers long tool life for a wide range of work materials.
  • The unique wavy cutting edge provides excellent sharpness and rigidity and helps to control wear at the periphery.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade DP1020
Sales unit 1
Stock
Unit of Length I

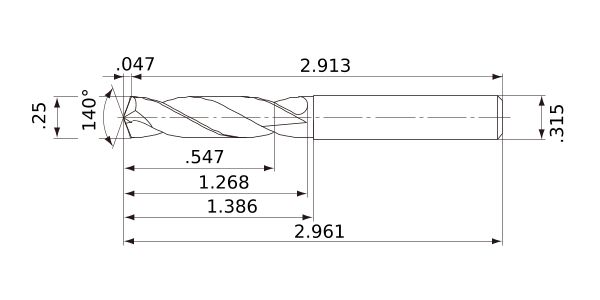

DC .25
DCON .315
SIG 140°
LF 2.913
OAL 2.961
LH 1.386
LU .547
LCF 1.268
FHA 30°
ld 2
PL .047
Effective Cutting Edge 2
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -.0009
Type of Coolant External
2D Model (DXF)
CAD data name Download
MVE0635X02S080
