Drills >MVS_INCH >MVS0305X03S060

Drills

MVS_INCH
（WSTAR）

MVS0305X03S060 EDP:662557

Product Information

  • New grade DP1020 offers long tool life for a wide range of work materials.
  • Unique coolant supply technology, TRI-cooling offers high machining efficiency. (on drills over ø6)

The actual product may differ from the displayed image.
For details, please check the dimensions below.

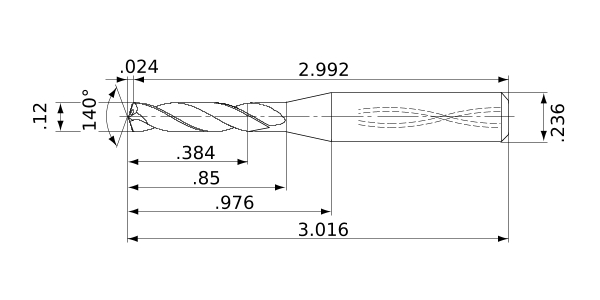

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade DP1020
Sales unit 1
Stock
Unit of Length I
DC .12
DCON .236
SIG 140°
LF 2.992
OAL 3.016
LH .976
LU .384
LCF .85
FHA 30°
ld 3
PL .024
Effective Cutting Edge 2
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -.0007
Type of Coolant Internal
2D Model (DXF)
CAD data name Download
MVS0305X03S060
