MVS_INCH
(WSTAR)
The actual product may differ from the displayed image.

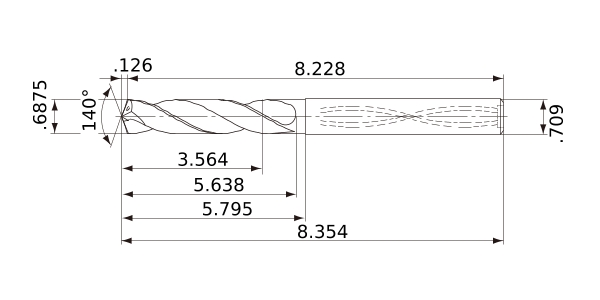

For details, please check the dimensions below.
Diameter (Unit) | |
---|---|
Name of Grade | Carbide |
Grade | DP1020 |
Sales unit | 1 |
Stock | |
Unit of Length | I |
DC | .6875 |
DCON | .709 |
SIG | 140° |
LF | 8.228 |
OAL | 8.354 |
LH | 5.795 |
LU | 3.564 |
LCF | 5.638 |
FHA | 30° |
ld | 5 |
PL | .126 |
Effective Cutting Edge | 2 |
Max. Cutting EdgeDiameter Tolerance | 0 |
Min. Cutting EdgeDiameter Tolerance | -.0011 |
Type of Coolant | Internal |
Stock
:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
