MVS_INCH
(WSTAR)
The actual product may differ from the displayed image.

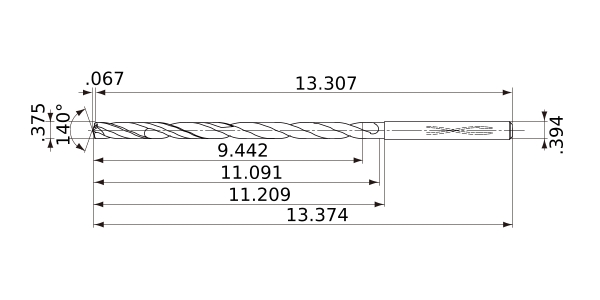

For details, please check the dimensions below.
Diameter (Unit) | |
---|---|
Name of Grade | Carbide |
Grade | DP1020 |
Sales unit | 1 |
Stock | |
Unit of Length | I |
DC | .375 |
DCON | .394 |
SIG | 140° |
LF | 13.307 |
OAL | 13.374 |
LH | 11.209 |
LU | 9.442 |
LCF | 11.091 |
FHA | 27° |
ld | 25 |
PL | .067 |
Effective Cutting Edge | 2 |
Max. Cutting EdgeDiameter Tolerance | -.013 |
Min. Cutting EdgeDiameter Tolerance | -.0022 |
Type of Coolant | Internal |
Stock
:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
