Drills >MVX_INCH >MVX0687X2C100

Drills

MVX_INCH


MVX0687X2C100 EDP:679261

Product Information

  • Ideal combination of outer CVD insert and inner PVD insert.
  • High rigidity body that enabled L/D=6 deep hole machining.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Stock
Unit of Length I

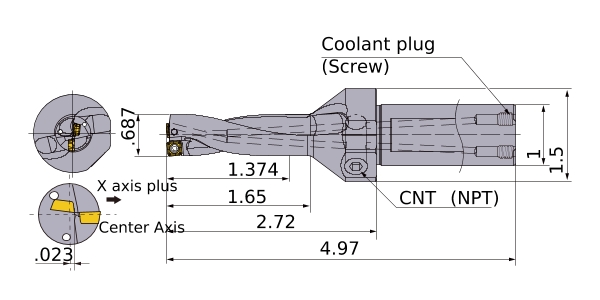

DC .687
DCON 1
DCSFMS 1.5
OAL 4.97
LPR 2.72
LU 1.374
S10 .023
LBX 1.65
ld 2
Cutting item count: CICT 2
Peripheral effective cutting edge count: ZEFP 2
Effective Cutting Edge 1
Type of Coolant Internal
2D Model (DXF)
CAD data name Download
MVX0687X2C100
