Drills >MFE_INCH >MFE0397X02S060

Drills

MFE_INCH
（Solid Carbide Flat Bottom Drills）

MFE0397X02S060 EDP:10562475

Product Information

  • High efficiency drilling in various types of machining.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

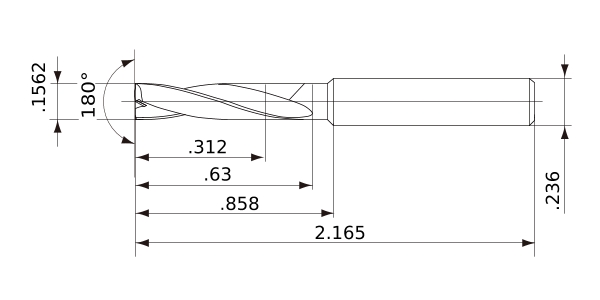

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade DP1020
Sales unit 1
Stock
Unit of Length I
DC .1562
DCON .236
SIG 180°
OAL 2.165
LH .858
LU .312
LCF .63
FHA 20°
ld 2
Effective Cutting Edge 2
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -.0005
Type of Coolant External
