Drills >DSAE >DSAE0700X03S080

Drills

DSAE
（Solid Carbide Drill for Machining Heat Resistant Alloys）

DSAE0700X03S080 EDP:10605073

Product Information

  • Straight Cutting Edge with Single-Pass Honing
  • New Grade for Machining of Heat Resistant Alloys DP9020
  • Special Margin

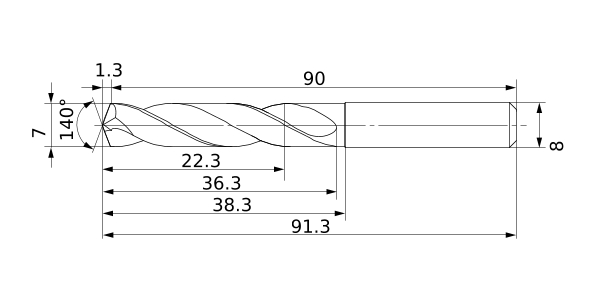

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade DP9020
Sales unit 1
Stock
Unit of Length M
DC 7
DCON 8
SIG 140°
LF 90
OAL 91.3
LH 38.3
LU 22.3
LCF 36.3
FHA 28°
ld 3
PL 1.3
Effective Cutting Edge 2
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -0.022
Type of Coolant External
