  • Mini Size
  • TRI-Cooling is optimal for small-diameter drills and can achieve more than double the conventional coolant discharge volume.
  • Increased coolant flow provides effective cooling even in difficult applications or when using an oil based cutting fluid.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

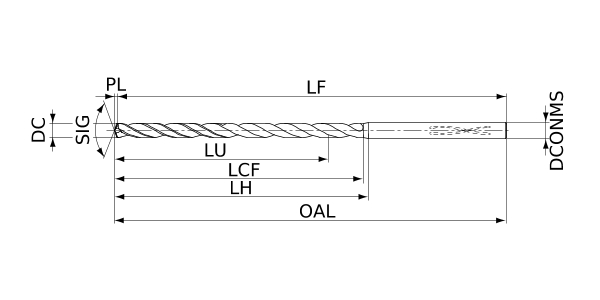

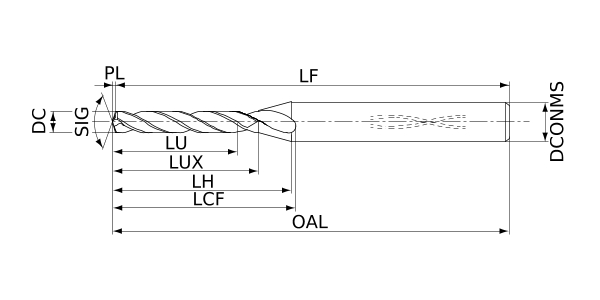

Type1 [Outspread]

Type2 [Outspread]

  1 2 3 4 5 6 7 8
Order Number Type CAD Type of Coolant Hand Name of Grade Grade Stock
DVAS0102X07S040 Type1 Internal   Carbide DP1120
DVAS0102X12S040 Type1 Internal   Carbide DP1120
DVAS0102X20S040 Type2 Internal   Carbide DP1120
DVAS0102X25S040 Type2 Internal   Carbide DP1120
DVAS0102X30S040 Type2 Internal   Carbide DP1120
DVAS0102X40S040 Type2 Internal   Carbide DP1120
DVAS0102X50S040 Type2 Internal   Carbide DP1120
DVAS0104X07S040 Type1 Internal   Carbide DP1120
DVAS0104X12S040 Type1 Internal   Carbide DP1120
DVAS0104X20S040 Type2 Internal   Carbide DP1120
DVAS0104X25S040 Type2 Internal   Carbide DP1120
DVAS0104X30S040 Type2 Internal   Carbide DP1120
DVAS0104X40S040 Type2 Internal   Carbide DP1120
DVAS0104X50S040 Type2 Internal   Carbide DP1120
DVAS0107X07S040 Type1 Internal   Carbide DP1120
DVAS0107X12S040 Type1 Internal   Carbide DP1120
DVAS0107X20S040 Type2 Internal   Carbide DP1120
DVAS0107X25S040 Type2 Internal   Carbide DP1120
DVAS0107X30S040 Type2 Internal   Carbide DP1120
DVAS0107X40S040 Type2 Internal   Carbide DP1120
D1 IC DMIN CUTDIA DAXX DC DC1 DC2 ld LU BHTA BHTA1 BHTA2 BHTA3 BHTA4 BHTA5 SIG SIG1 SIG2 L3 LBB CDX L20 LDRED L15 LCF L2 LH L19 LPR L1 L L24 FLGT LF CBDP OAL D4 DCON D2 DCX D5 DN DCSFMS BD BD1 BD2 BD3 BD4 BD5 D8 DAH DAH1 DAH2 DCCB CNT D9 B L7 LCCB L8 L9 HBKW LS H1 H H2 HF HBH W1 KWW F1 WF BS S1 WF2 S4 S Z2 PDY PDX ap APMX HTB DCN CDI DCINX BDX CWX LBX RR GAMF GAMO LAMS ALF FHA KRINS STA WT R PRFRAD RE RE1 RE2 RE3 LTA LBYD KWL Cutting item count: CICT Peripheral effective cutting edge count: ZEFP Face effective cutting edge count: ZEFF Effective Cutting Edge Breaker Use body Modular Blade Insert Number DBC DBC1 DBC2 DBC3 DCONWS DCONMS KAPR KAPR1 KAPR2 LB LB1 LB2 LB3 LB4 LB5 LE LE1 LE2 LE3 TX1 TX2 TX3
.04 7 .287 139° .555 .547 2.157 2.165 2   .157
.04 12 .487 139° .763 .748 2.276 2.283 2   .157
.04 20 .807 139° .96 1.181 2.63 2.638 2   .157
.04 25 1.007 139° 1.165 1.386 2.866 2.874 2   .157
.04 30 1.207 139° 1.374 1.594 3.102 3.11 2   .157
.04 40 1.607 139° 1.787 2.008 3.535 3.543 2   .157
.04 50 2.007 139° 2.2 2.421 4.008 4.016 2   .157
.041 7 .295 139° .555 .551 2.157 2.165 2   .157
.041 12 .499 139° .764 .756 2.276 2.283 2   .157
.041 20 .827 139° .96 1.177 2.63 2.638 2   .157
.041 25 1.032 139° 1.165 1.382 2.866 2.874 2   .157
.041 30 1.237 139° 1.374 1.591 3.102 3.11 2   .157
.041 40 1.647 139° 1.787 2.004 3.535 3.543 2   .157
.041 50 2.057 139° 2.201 2.417 4.008 4.016 2   .157
.042 7 .302 139° .575 .559 2.157 2.165 2   .157
.042 12 .512 139° .791 .768 2.276 2.283 2   .157
.042 20 .848 139° 1.004 1.22 2.63 2.638 2   .157
.042 25 1.058 139° 1.22 1.437 2.866 2.874 2   .157
.042 30 1.268 139° 1.437 1.654 3.102 3.11 2   .157
.042 40 1.688 139° 1.87 2.087 3.535 3.543 2   .157
