Indexable End Mills >PMC >PMC08R252AM1035

Indexable End Mills

PMC


PMC08R252AM1035 EDP:539330

Product Information

  • 2 directional cutting with large overhang.

The actual product may differ from the displayed image.

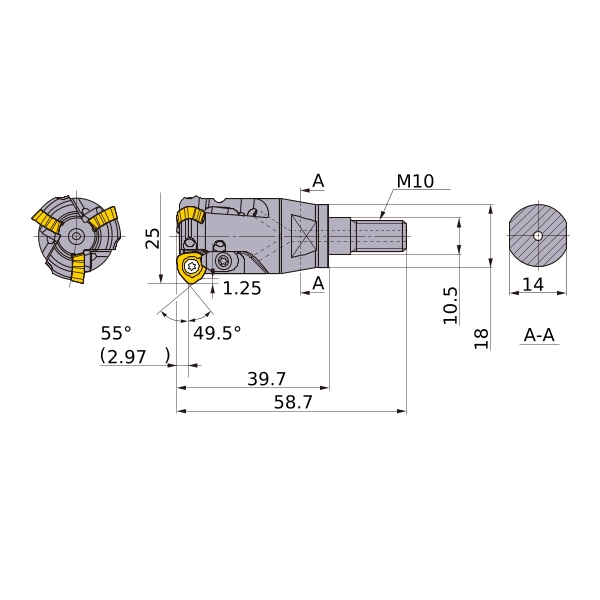

For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Hand R
Stock
Unit of Length M
DCX 25
DCON 10.5
DCSFMS 18
KAPR1 49.5°
KAPR2 55°
LF 39.7
OAL 58.7
S10 14
APMX 2.97
CWX 1.25
GAMP +5°
GAMF +8°
CRKS M10
Cutting item count: CICT 2
Peripheral effective cutting edge count: ZEFP 2
