Indexable End Mills >PMC >PMC12R403AM1645

Indexable End Mills

PMC


PMC12R403AM1645 EDP:539356

Product Information

  • 2 directional cutting with large overhang.

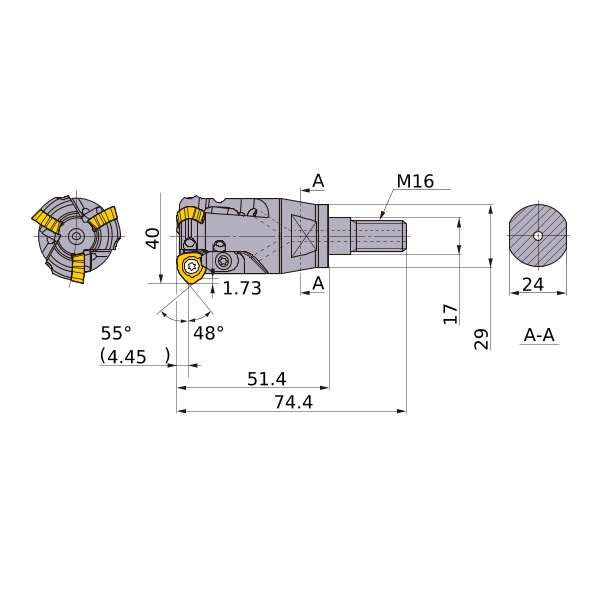

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Hand R
Stock
Unit of Length M
DCX 40
DCON 17
DCSFMS 29
KAPR1 48°
KAPR2 55°
LF 51.4
OAL 74.4
S10 24
APMX 4.45
CWX 1.73
GAMP +5°
GAMF +8°
CRKS M16
Cutting item count: CICT 3
Peripheral effective cutting edge count: ZEFP 3
