  • Economical due to the use of 3 cutting edges.
  • High rigidity due to the employment of double clamp mechanics.
  • Suitable for high feed cutting.
  • Air coolant through.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

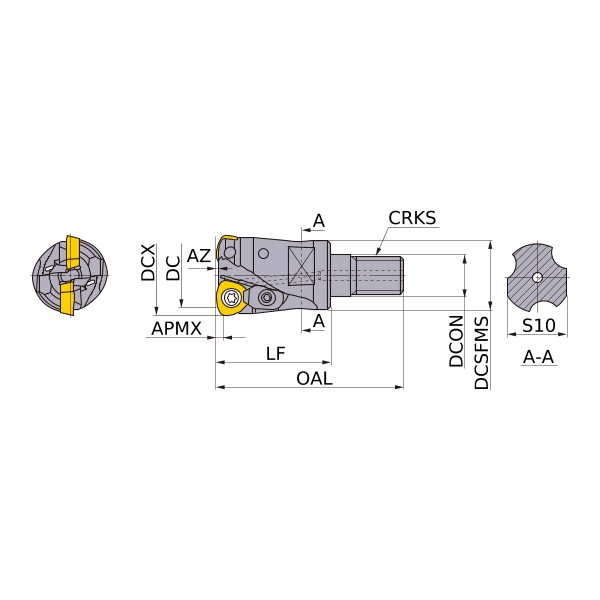

Type1 [Outspread]

Type2 [Outspread]

Type3 [Outspread]

Type4 [Outspread]

Type5 [Outspread]

Type6 [Outspread]

Type7 [Outspread]

  1 2
Order Number Type CAD Type of Coolant Hand Name of Grade Grade Stock
AJXU06R102AM0830 Type5 CAD R
AJXU06R102FA10S Type1 CAD R
AJXU06R102SA10L Type4 CAD R
AJXU06R102SA10M Type4 CAD R
AJXU06R112FA10S Type1 CAD R
AJXU06R112SA10L Type4 CAD R
AJXU08R122SA12L Type4 CAD R
AJXU08R122WA12S Type2 CAD R
AJXU08R122AM1030 Type6 CAD R
AJXU06R123AM1030 Type7 CAD R
AJXU06R123SA12M Type4 CAD R
AJXU08R142AM1030 Type6 CAD R
AJXU08R142FA12S Type1 CAD R
AJXU08R142SA12L Type4 CAD R
AJXU06R143AM1030 Type7 CAD R
AJXU09R162SA16L Type4 CAD R
AJXU09R162WA16S Type3 CAD R
AJXU09R162AM1235 Type6 CAD R
AJXU08R163AM1235 Type5 CAD R
AJXU08R163SA16M Type4 CAD R
R PRFRAD Cutting item count: CICT Peripheral effective cutting edge count: ZEFP Face effective cutting edge count: ZEFF Effective Cutting Edge D1 IC DMIN CUTDIA DAXX DC DC1 DC2 BD BD1 BD2 BD3 BD4 BD5 ap APMX HTB DCN CDI DCINX BDX CWX LBX L1 L L24 FLGT CBDP OAL LPR L2 LH L19 LU LF D4 DCON D2 DCX D5 DN DCSFMS D8 DAH DAH1 DAH2 DCCB CNT D9 B L3 LBB CDX L20 LDRED L15 LCF L7 LCCB L8 L9 HBKW LS H1 H H2 HF HBH W1 KWW F1 WF BS S1 WF2 S4 S Z2 PDY PDX RR GAMF GAMO LAMS ALF FHA KRINS STA WT RE RE1 RE2 RE3 ld BHTA BHTA1 BHTA2 BHTA3 BHTA4 BHTA5 SIG SIG1 SIG2 LTA LBYD KWL Breaker Use body Modular Blade Insert Number DBC DBC1 DBC2 DBC3 DCONWS DCONMS KAPR KAPR1 KAPR2 LB LB1 LB2 LB3 LB4 LB5 LE LE1 LE2 LE3 TX1 TX2 TX3
2 2 .346 .024 1.89 1.181 .335 .625 .512 -5° 0.2
2 2 .346 .024 1.25 3.75 .625 .625 -5°
2 2 .346 .024 2.75 5.75 .625 .625 -5°
2 2 .346 .024 1.5 5.75 .625 .625 -5°
2 2 .409 .024 .75 3.75 .625 .688 -5°
2 2 .409 .024 .75 5.75 .625 .688 -5°
2 2 .41 .035 4 7 .75 .75 -5°
2 2 .41 .035 2 4.75 .75 .75 -5°
2 2 .417 .035 1.929 1.181 .413 .75 .709 -5° 0.2
3 3 .472 .024 1.929 1.181 .413 .75 .709 -6° 0.2
3 3 .472 .024 2.375 7 .75 .75 -7.5°
2 2 .535 .035 1.929 1.181 .413 .875 .709 -5° 0.2
2 2 .535 .035 1.25 4.75 .75 .875 -5°
2 2 .535 .035 1.25 7 .75 .875 -5°
3 3 .595 .024 1.929 1.181 .413 .875 .709 -6° 0.2
2 2 .6 .047 4.75 8 1 1 -5°
2 2 .6 .047 2.375 5.625 1 1 -5°
2 2 .602 .047 2.244 1.378 .492 1 .827 -5° 0.4
3 3 .661 .035 2.244 1.378 .492 1 .827 -6° 0.2
3 3 .661 .035 2.75 8 1 1 -6°
  1 2

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
