Indexable End Mills

AQX_INCH


AQXUR214SA20L EDP:189931

Product Information

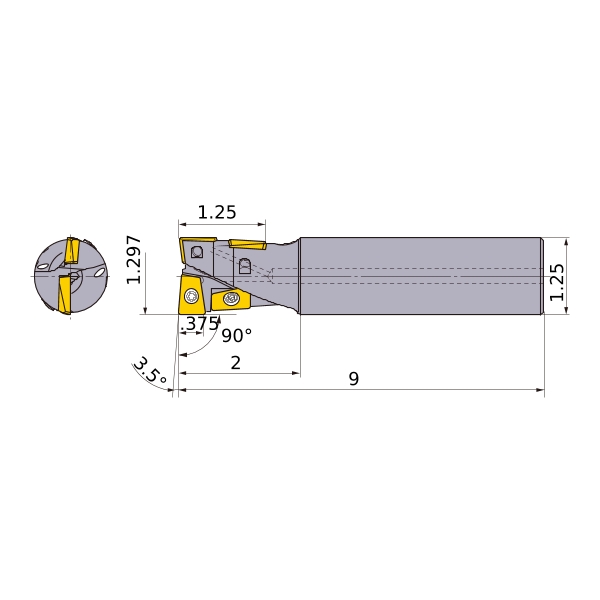

  • Air coolant through.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Hand R
Stock
Unit of Length I
A3 .375
DC 1.297
DCON 1.25
KAPR 90°
LF 9
LH 2
APMX 1.25
Cutting item count: CICT 4
Peripheral effective cutting edge count: ZEFP 2
