  • S-shaped cutting edge provides sharpness similar to that of solid ball nose end mills.
  • Highly accurate corner radius tolerance allows for high precision finishing.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

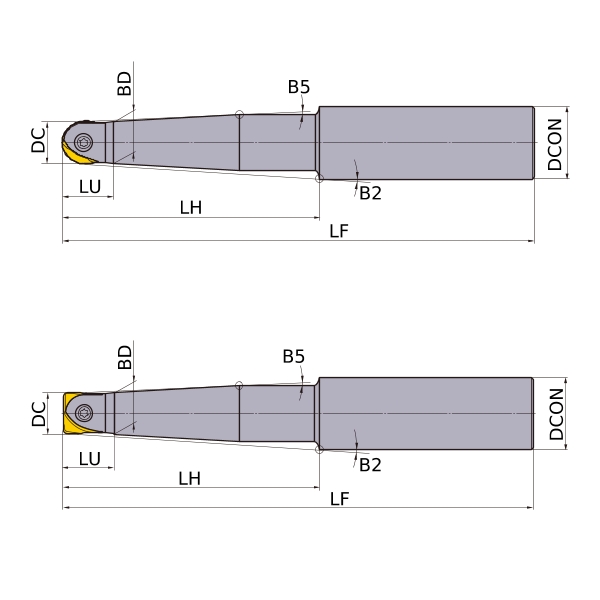

Type1 [Outspread]

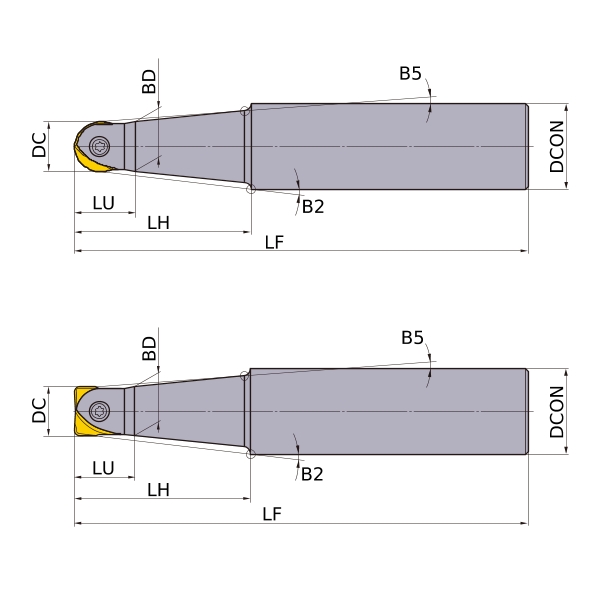

Type2 [Outspread]

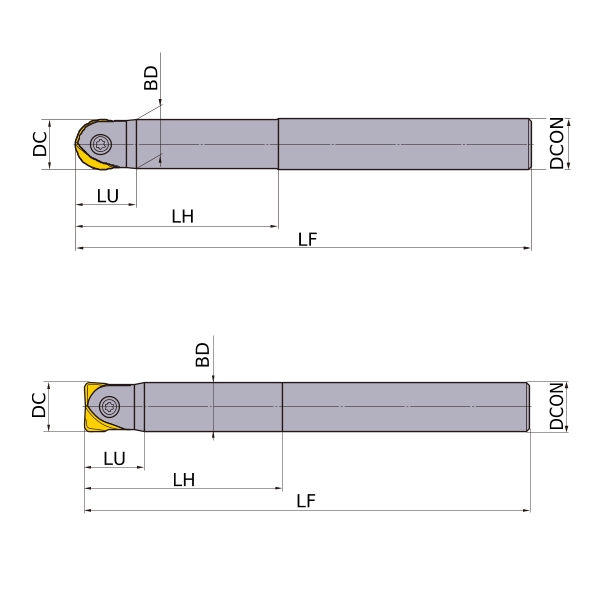

Type3 [Outspread]

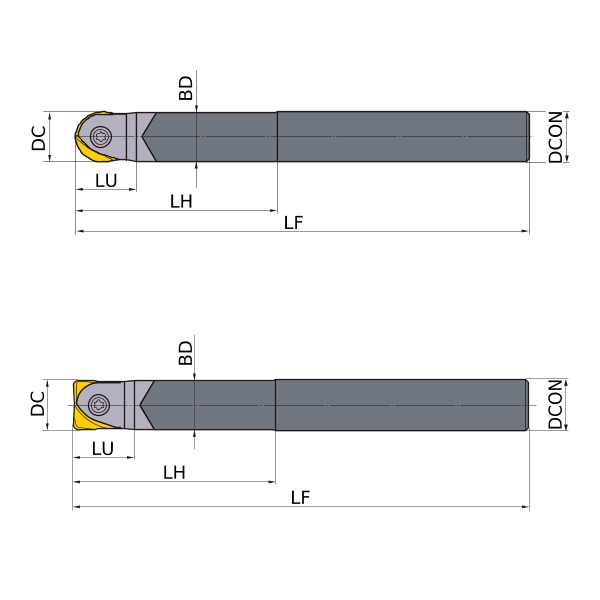

Type4 [Outspread]

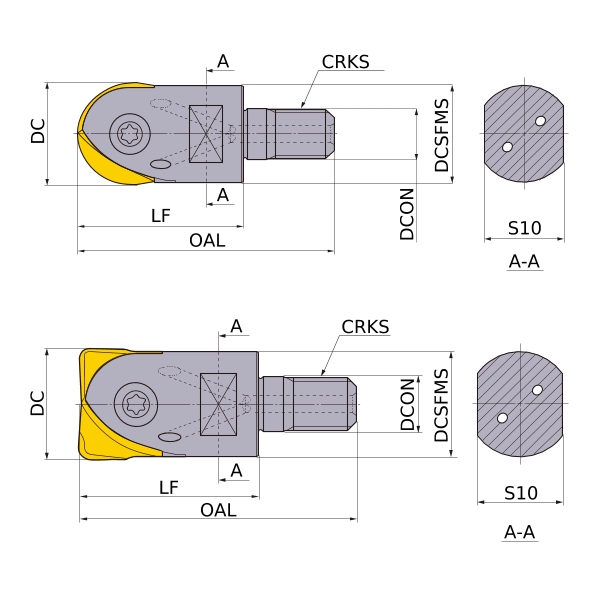

Type5 [Outspread]

  1 2
Reference Number Type CAD Type of Coolant Hand Name of Grade Grade Stock
SRFU06S06LW Type4 CAD R
SRFU06S06MW Type4 CAD R
SRFU06S08L Type1 CAD R
SRFU06S08M Type1 CAD R
SRFU08S08LW Type4 CAD R
SRFU08S08MW Type4 CAD R
SRFU08S10L Type1 CAD R
SRFU08S10M Type1 CAD R
SRFHU10AM0830 Type5 CAD R
SRFU10S10LW Type4 CAD R
SRFU10S10MW Type4 CAD R
SRFU10S12L Type3 CAD R
SRFU10S12M Type1 CAD R
SRFHU12AM1035 Type5 CAD R
SRFU12S12LW Type4 CAD R
SRFU12S12MW Type4 CAD R
SRFU12S16L Type1 CAD R
SRFU12S16M Type1 CAD R
SRFU16S16LW Type4 CAD R
SRFU16S16MW Type4 CAD R
R PRFRAD Cutting item count: CICT Peripheral effective cutting edge count: ZEFP Face effective cutting edge count: ZEFF Effective Cutting Edge D1 IC DMIN CUTDIA DAXX DC DC1 DC2 BD BD1 BD2 BD3 BD4 BD5 ap APMX HTB DCN CDI DCINX BDX CWX LBX L1 L L24 FLGT CBDP OAL LPR L2 LH L19 LU LF D4 DCON D2 DCX D5 DN DCSFMS D8 DAH DAH1 DAH2 DCCB CNT D9 B L3 LBB CDX L20 LDRED L15 LCF L7 LCCB L8 L9 HBKW LS H1 H H2 HF HBH W1 KWW F1 WF BS S1 WF2 S4 S Z2 PDY PDX RR GAMF GAMO LAMS ALF FHA KRINS STA WT RE RE1 RE2 RE3 ld BHTA BHTA1 BHTA2 BHTA3 BHTA4 BHTA5 SIG SIG1 SIG2 LTA LBYD KWL Breaker Use body Modular Blade Insert Number DBC DBC1 DBC2 DBC3 DCONWS DCONMS KAPR KAPR1 KAPR2 LB LB1 LB2 LB3 LB4 LB5 LE LE1 LE2 LE3 TX1 TX2 TX3
1 2 .394 .354 3.125 .512 6.625 .375
1 2 .394 .354 1.625 .512 4.375 .375
1 2 .394 .354 2.5 .512 6 .5
1 2 .394 .354 1.625 .512 4.375 .5
1 2 .472 .453 3.125 .591 6.625 .5
1 2 .472 .453 2 .591 4.75 .5
1 2 .472 .453 2.875 .591 6.375 .625
1 2 .472 .453 2 .591 4.75 .625
1 2 .625 1.89 1.181 .335 .587 0.2
1 2 .63 .606 4.5 .787 8 .625
1 2 .63 .606 2.125 .787 5.25 .625
1 2 .63 .606 3.625 .787 7.125 .75
1 2 .63 .606 2 .787 5.125 .75
1 2 .75 2.126 1.378 .413 .724 0.2
1 2 .787 .732 6.125 .945 10 .75
1 2 .787 .732 4 .945 7.125 .75
1 2 .787 .732 4.625 .945 8.5 1
1 2 .787 .732 2.875 .945 6 1
1 2 .984 .965 8.125 1.181 12 1
1 2 .984 .965 4.125 1.181 8 1
  1 2

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
