Indexable End Mills

APX4000_SHELL_MM


APX4K-063A16A056RA EDP:544585

INCH Products
Shape Series Geometry Tooling Sheet Cutter Body Type Feature Structure
APX4000_INCH Square (With Center Hole)
  • Standard
  • Long
  • Extra Long
  • Screw in
  • Air coolant through.
  • Low resistance insert and high rigidity body.
  • Ideal chip control.
  • High wall accuracy can be produced by using this cutter and unique insert geometry.
 Indexable
APX4000_LONG_INCH Square (With Center Hole Long Cut Length)
  • Long cutting edge
  • Ideal chip control.
  • High wall accuracy can be produced by using this cutter and unique insert geometry.
  • Air coolant through.
  • Low resistance insert and high rigidity body.
 Indexable
APX4000_SHELL_INCH Square (With Center Hole Long Cut Length)
  • Shell
  • Air coolant through.
  • Low resistance insert and high rigidity body.
  • Ideal chip control.
  • High wall accuracy can be produced by using this cutter and unique insert geometry.
 Indexable

Product Information

  • High accuracy, high quality vertical wall.
  • Air coolant through.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Hand R
Stock

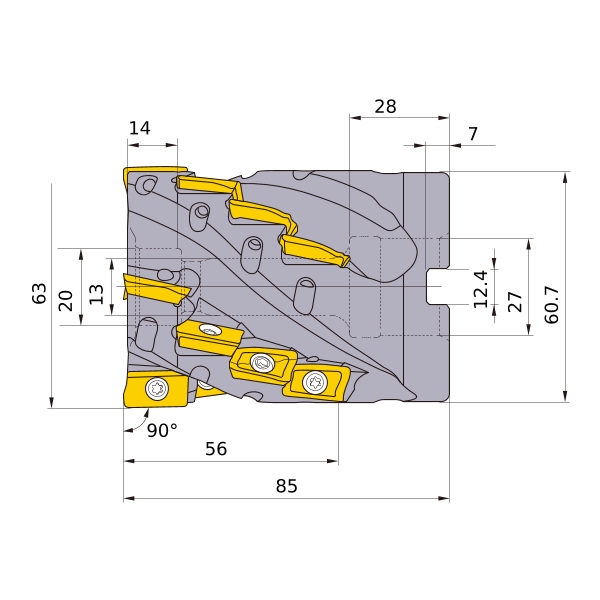

Unit of Length M
DC 63
DCON 27
DCSFMS 60.7
DAH 13
DCCB 20
KAPR 90°
L8 7
LF 85
CBDP 28
LCCB 14
KWW 12.4
APMX 56
GAMP +12°
GAMF +6°
Cutting item count: CICT 16
Peripheral effective cutting edge count: ZEFP 4
