Indexable End Mills

AXD4000_INCH
（For Aluminum Alloy）

AXD4000UR243SA20LB EDP:569248

METRIC Products
Shape Series Geometry Tooling Sheet Cutter Body Type Feature Structure
AXD4000 Square (With Center Hole)
  • Standard
  • High spindle speeds possible.
  • Excellent wall accuracy.
  • Multi functional milling.
  • Low resistance inserts.
 Indexable
AXD4000_SCREW_IN Square (With Center Hole)
  • Screw in
  • High spindle speeds possible.
  • Excellent wall accuracy.
  • Multi functional milling.
  • Low resistance inserts.
 Indexable

Product Information

  • High spindle speeds possible.
  • Excellent wall accuracy.
  • Multi functional milling.
  • Low resistance inserts.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Hand R
Stock

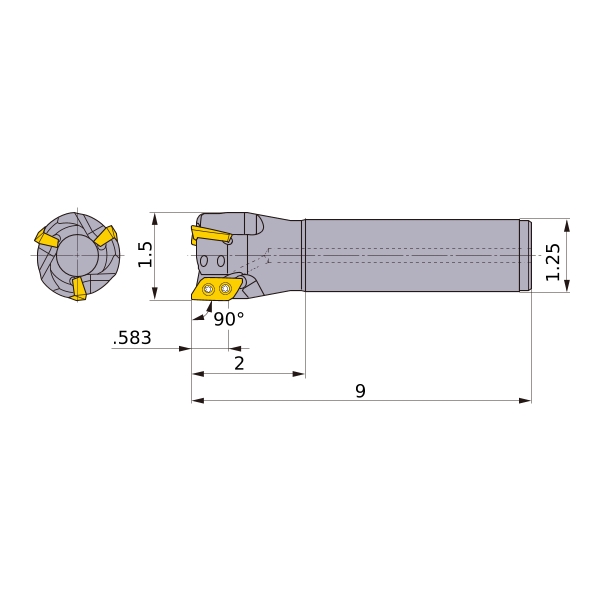

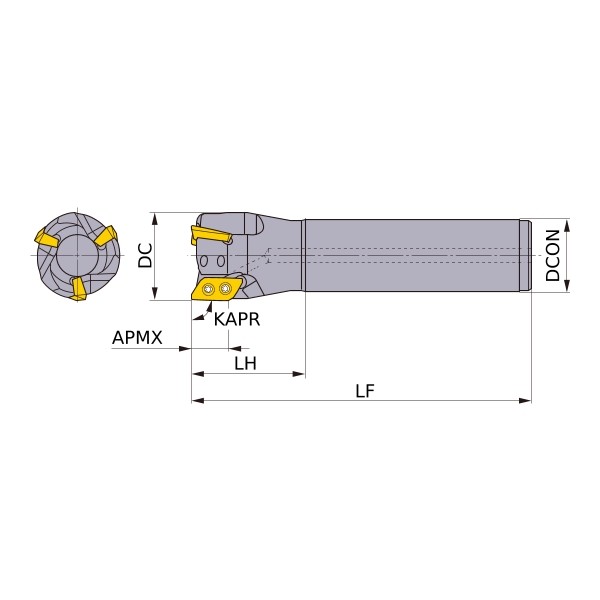

Unit of Length I
DC 1.5
DCON 1.25
KAPR 90°
LF 9
LH 2
APMX .583
GAMP +14°
GAMF +21°
Cutting item count: CICT 3
Peripheral effective cutting edge count: ZEFP 3
RPMX 41000
2D Model (DXF)
CAD data name Download
AXD4000UR243SA20LB
CAD
