Indexable End Mills >WJX14 >WJX14R5003SA42L

Indexable End Mills

WJX14
（Double-sided Insert Type High Feed Radius Milling Cutter）

WJX14R5003SA42L EDP:10596265

Product Information

  • Double sided Z Geometry.
  • Smooth chip discharge.

The actual product may differ from the displayed image.

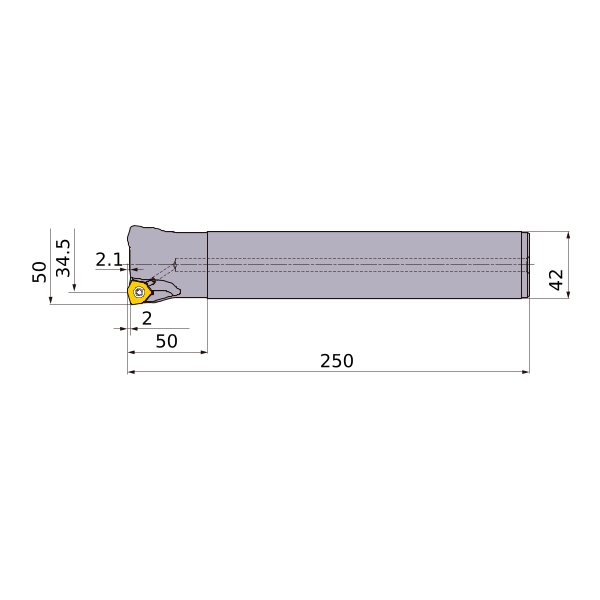

For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Hand R
Stock
Unit of Length M
AZ 2.1
DC 34.5
DCX 50
DCON 42
RMPX 4.4°
LF 250
LH 50
APMX 2
GAMP -7°
GAMF -10°
Cutting item count: CICT 3
Peripheral effective cutting edge count: ZEFP 3
RPMX 21200
2D Model (DXF)
CAD data name Download
WJX14R5003SA42L
CAD
